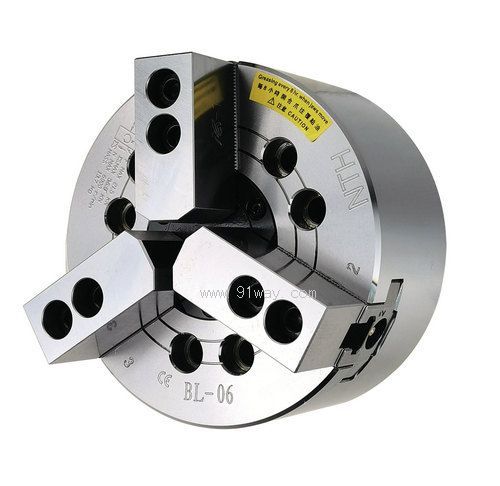

規格 Spec
型號 Model

楔心行程
Plunger stroke
mm

爪行程直徑
Jaw stroke Dia.
mm

最大夾持直徑
Max chucking Dia.
mm

最小夾持直徑
Min chucking Dia.
mm

容許油壓缸推力

Max.D.B.Pull

kgf

BL-05 A4

12

18

135

6

15.6(1590)

BL-06 A5

15

24

170

18

23.5(2400)

BL-08 A5

20

32

215

25

34.3(3500)

BL-08 A6

20

32

215

25

34.3(3500)

BL-10 A6

25

37.5

260

47

47.7(4870)

BL-10 A8

25

37.5

260

47

47.7(4870)

BL-12 A8

30

45

315

54

64.7(6600)

BL-15 A11

35

52

385

50

84.3(8600)

規格 Spec
型號 Model

最大夾持力
Max clamping force
kgf

最高轉速
Max RPM

慣性矩
I
kg*m2

重量
Weight
kg

帶法蘭重量
Weight(Ad.)
kg

適合油壓缸
Matched cylinders

BL-05 A4

17.2(1750)

4200

0.019

7.2

8

H-1036

BL-06 A5

26.0(2650)

3600

0.063

13

14.8

H-1246

BL-08 A5

35.0(4150)

3000

0.175

23

25.9

H-1552

BL-08 A6

35.0(4150)

3000

0.175

23

24.1

H-1552

BL-10 A6

61.0(5700)

2400

0.347

38

45

H-1875

BL-10 A8

61.0(5700)

2400

0.347

38

43.5

H-1875

BL-12 A8

68.0(7650)

2100

0.827

62

67.5

H-2091

BL-15 A11

68.0(6930)

1600

2.58

136

143

H-2511

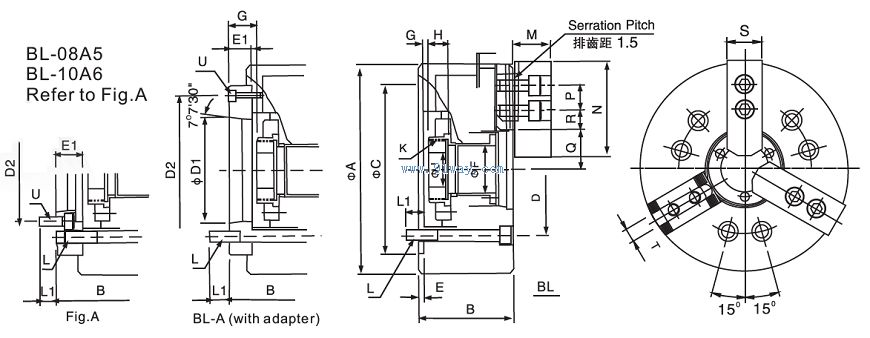

規格 Spec
型號 Model

A

B

B (Ad.)

C(H6)

D

D1

D2

E

E1

F

Gmax

Gmax(Ad.)

Gmin

Gmin(Ad.)

H

J

BL-05 A4

135

65

76

110

82.6

63.51

96

4

15

32

1

16

-11

4

20

12

BL-06 A5

168

84

97

140

104.8

82.56

116

5

18

42

6.5

24.5

-8.5

9.5

19

20

BL-08 A5

210

96

118

170

133.4

82.56

104.8

5

23

52

7

34

-13

14

20

30

BL-08 A6

210

96

114

170

133.4

106.38

150

5

17

52

7

30

-13

10

20

30

BL-10 A6

254

110

130

220

171.5

106.38

133.4

5

25

70

8

33

-17

8

25

45

BL-10 A8

254

110

123

220

171.5

139.72

190

5

18

70

8

26

-17

1

25

45

BL-12 A8

304

127

140

220

171.5

139.72

190

6

18

91

15

33

-15

3

28

50

BL-15 A11

385

150

166

300

235

196.87

260

6

22

120

12.5

34.5

-22.5

-0.5

39

60

規格 Spec
型號 Model

K max

L

L1

L1(Ad.)

M

N

P

Q max

Q min

R max

R min

S

T

U

BL-05 A4

M40×1.5

3-M10

15

15

31

62

14

23

13.75

31

22

25

10

3-M6

BL-06 A5

M55×2

6-M10

18

15

37

73

20

25.7

13.75

39

27

31

12

3-M6

BL-08 A5

M60×2

6-M12

18

19

38

95

25

28.25

16.25

49.25

33.25

35

14

6-M10

BL-08 A6

M60×2

6-M12

18

20

38

95

25

28.25

16.25

49.25

33.25

35

14

3-M6

BL-10 A6

M85×2

6-M16

22

20

43

110

30

35.25

17.25

64.25

45.25

40

16

6-M12

BL-10 A8

M85×2

6-M16

22

25

43

110

30

35.25

17.25

64.25

45.25

40

16

3-M8

BL-12 A8

M100×2

6-M16

20

19

51

130

30

46.25

19.25

77

54.5

50

21

3-M8

BL-15 A11

M130×2

6-M20

33

31

63

165

43

51.25

27.25

94.25

68.25

62

22

3-M10
