規格 Spec
型號 Model

楔心行程
Plunger stroke
mm

爪行程直徑
Jaw stroke Dia.
mm

最大夾持直徑
Max chucking Dia.
mm

最小夾持直徑
Min chucking Dia.
mm

容許油壓缸推力

Max.D.B.Pull

kgf

BT-204

10

5.4

110

7

940

BT-205 A4

10

5.4

135

12

1190

BT-206 A5

12

5.5

169

15

1470

BT-208 A5

16

7.4

210

13

2360

BT-208 A6

16

7.4

210

13

2360

BT-210 A6

19

8.8

254

31

2900

BT-210 A8

19

8.8

254

31

2900

BT-212 A8

23

10.6

304

34

3740

BT-215 A11

23

10.6

381

50

4790

BT-218 A11

23

10.6

450

50

4823

規格 Spec
型號 Model

最大夾持力
Max clamping force
kgf

最高轉速
Max RPM

慣性矩
I
kg*m2

重量
Weight
kg

帶法蘭重量
Weight(Ad.)
kg

適合油壓缸
Matched cylinders

BT-204

1930

8000

0.01

3.8

-

H-0928

BT-205 A4

2440

7000

0.02

6.5

7.3

H-1036

BT-206 A5

3870

6000

0.06

11.5

13.3

H-1246

BT-208 A5

5840

5000

0.17

21.3

24.2

H-1552

BT-208 A6

5840

5000

0.17

21.3

22.4

H-1552

BT-210 A6

7540

4200

0.31

33.5

40.5

H-1875

BT-210 A8

7540

4200

0.31

33.5

39

H-1875

BT-212 A8

9780

3300

0.7

59.7

62.7

H-2091

BT-215 A11

12200

2500

2.23

115

122

H-2511

BT-218 A11

12236

2000

3.31

122

133

H-2511

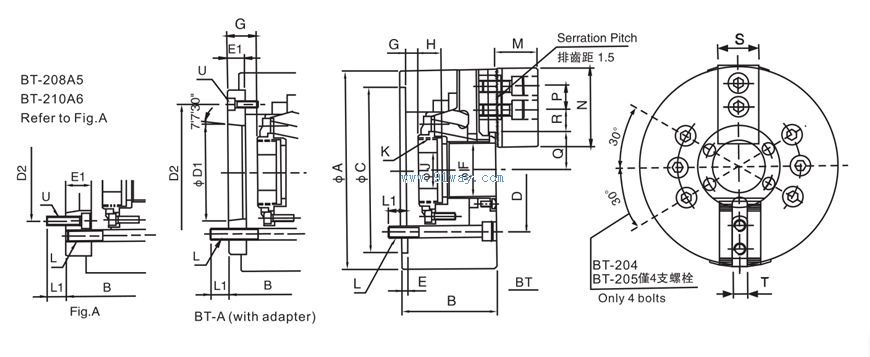

規格 Spec

型號 Model

A

B

B (Ad.)

C(H6)

D

D1

D2

E

E1

F

Gmax

Gmax(Ad.)

Gmin

Gmin(Ad.)

H

J

BT-204

110

59

-

85

70.6

-

-

4

-

26

3.5

-

-6.5

-

17.5

12

BT-205 A4

135

60

71

110

82.6

63.51

96

4

15

33

1

16

-9

6

20

12

BT-206 A5

169

81

91

140

104.8

82.56

116

5

15

45

11

26

-1

14

19

20

BT-208 A5

210

91

109

170

133.4

82.56

104.8

5

23

52

14.5

37.5

-1.5

21.5

20.5

30

BT-208 A6

210

91

103

170

133.4

106.38

150

5

17

52

14.5

31.5

-1.5

15.5

20.5

30

BT-210 A6

254

100

120

220

171.5

106.38

133.4

5

25

75

8.5

33.5

-10.5

14.5

25

45

BT-210 A8

254

100

113

220

171.5

139.72

190

5

18

75

8.5

26.5

-10.5

7.5

25

45

BT-212 A8

304

110

122

220

171.5

139.72

190

6

18

91

8

26

-15

3

28

50

BT-215 A11

381

133

149

300

235

196.87

260

6

22

117.5

11

33

-12

10

39

60

BT-218 A11

450

133

149

300

235

196.87

260

6

22

117.5

7

29

-16

6

43

-

規格 Spec

型號 Model

K max

L

L1

L1(Ad.)

M

N

P

Q max

Q min

R max

R min

S

T

U

BT-204

M32×1.5

3-M10

16

-

24

52

14

23

20.3

11.3

6.8

23

10

-

BT-205 A4

M40×1.5

3-M10

15

15

31

62

14

26.5

23.8

19.8

7.8

25

10

3-M6

BT-206 A5

M55×2

6-M10

16

16

37

73

20

32

29.3

22.8

9.3

31

12

3-M6

BT-208 A5

M60×2

6-M12

20

18

38

95

25

38.7

35

29.8

14.8

35

14

6-M10

BT-208 A6

M60×2

6-M12

20

18

38

95

25

38.7

35

29.8

14.8

35

14

3-M6

BT-210 A6

M85×2

6-M16

22

18

43

110

30

51

46.6

33.8

14.3

40

16

6-M12

BT-210 A8

M85×2

6-M16

22

24

43

110

30

51

46.6

33.8

14.3

40

16

3-M8

BT-212 A8

M100×2

6-M16

23

25

51

130

30

61.3

56

45.8

15.8

50

21

3-M8

BT-215 A11

M130×2

6-M20

30

28

66

165

43

82

76.7

46.8

13.8

62

22

4-M10

BT-218 A11

M130×2

6-M20

30

28

66

165

43

82

76.7

79.5

15.25

62

22

3-M10
