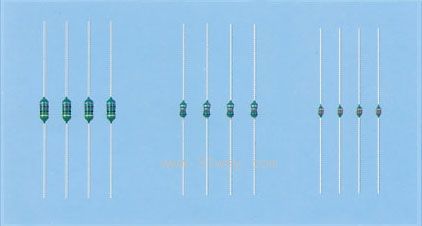

LGA0307  電氣特性參數

品名

電感量

  (uH)

品質因素

(MIN)

測試頻率

(MHz)

自共振頻率(MHz)MIN

直流電阻(OHM)MAX

額定電流

(mA)MAX

LGA0307-1R0K

1.0

65

25.2

180

0.12

700

LGA0307-1R2K

1.2

50

7.96

165

0.18

700

LGA0307-1R5K

1.5

50

7.96

150

0.20

700

LGA0307-1R8K

1.8

70

7.96

125

0.23

655

LGA0307-2R2K

2.2

50

7.96

85

0.25

630

LGA0307-2R7K

2.7

60

7.96

80

0.28

595

LGA0307-3R3K

3.3

60

7.96

75

0.30

575

LGA0307-3R9K

3.9

60

7.96

65

0.32

555

LGA0307-4R7K

4.7

50

7.96

45

0.35

530

LGA0307-5R6K

5.6

50

7.96

36

0.40

500

LGA0307-6R8K

6.8

50

7.96

30

0.45

470

LGA0307-8R2K

8.2

50

7.96

28

0.55

425

LGA0307-100K

10

50

7.96

22

0.72

370

LGA0307-120K

12

50

2.52

20

0.80

350

LGA0307-150K

15

50

2.52

16

0.88

335

LGA0307-180K

18

50

2.52

15

1.00

315

LGA0307-220K

22

60

2.52

13

1.20

285

LGA0307-270K

27

60

2.52

11

1.35

270

LGA0307-330K

33

50

2.52

10

1.50

255

LGA0307-390K

39

50

2.52

9.5

1.70

240

LGA0307-470K

47

50

2.52

8.5

2.30

205

LGA0307-560K

56

55

2.52

7.5

2.60

195

LGA0307-680K

68

55

2.52

6.5

3.20

185

LGA0307-820K

82

55

2.52

6.0

3.50

175

LGA0307-101K

100

60

2.52

5.5

3.80

165

LGA0307-121K

120

75

0.796

5.4

3.80

160

LGA0307-151K

150

75

0.796

4.75

4.40

150

LGA0307-181K

180

75

0.796

4.35

5.0

140

LGA0307-221K

220

75

0.796

4.0

5.7

130

LGA0307-271K

270

70

0.796

3.7

6.5

120

LGA0307-331K

330

70

0.796

3.4

9.5

100

LGA0307-391K

390

70

0.796

2.8

10.5

95

LGA0307-471K

470

70

0.796

2.4

12.5

90

LGA0307-561K

560

70

0.796

2.2

14.5

85

LGA0307-681K

680

70

0.796

2.0

18.0

75

LGA0307-821K

820

60

0.796

1.6

23.7

65

LGA0307-102K

1000

60

0.796

1.15

30.0

60

J:+5%; K:+10% ; M:+20%

P/N 料號

A  (MAX)

B (MAX)

C (MAX)

LGA0307

3.0

7.62

0.5±0.1
