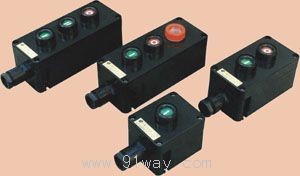

| 產品名稱: | BAZA8030防爆控制按鈕 | |||||
| 型號規格: | ![]() |
|||||
| 產品類別: | 常規產品 -- 特種電器 -- 防爆主令 | |||||
| 參考價格: | 廠價直銷 | |||||
| 產品品牌: | 國產 | |||||
| 產品產地: | 上海 | |||||
| 可供數量: | 批量 | |||||
| 供貨周期: | 現貨(或電詢) | |||||
|
||||||
| 產品簡介: |
|
|||||


|
額定絕緣電壓 Rated isolation voltage(A) |
額定工作電壓 Branch rated voltage(V) |
額定工作電流 Branch rated current(A) |
防護等級 Protection category |
防爆標志 Explosion- proofing maker |
防腐等級 Corrosion- proofing grade |
進線口螺紋/電纜外徑 Inlet’s thread/Cable’s outside diameter |
|
500 |
AC220 |
6 |
IP65 |
Exed Ⅱ CT6 |
WF2 |
G1/2/Φ8~Φ10 G3/4/Φ10~Φ15 |
|
AC380 |
4 | |||||
|
DC24 |
6 | |||||
|
DC110 |
0.5 | |||||
|
DC220 |
0.2 |

|
額定電壓 Rated voltage(V) |
額定電流 Rated current(A) |
使用類別 Using sort |
防爆標志 Explosion-proof mark |
防護等級 Protection degree |
進線口螺紋 Inlet’s thread |
電纜外徑 Cable’s outside diameter(mm) | ||||||
|
AC220±10% AC380±10% |
10 |
AC1 AC3 |
|
IP66 |
G3/4" G1" |
8~12 10~16 |
|
觸點組合型式 Contact’s compound type |
![]() |
![]() |
![]() |
|
代號 Code |
1 |
2 |
3 |
|
代號 Code |
控制銨鈕類型 Kinds of controlling button |
|
01 |
橡套型按鈕頭標志O Rubber-cased button marker o |
|
02 |
橡套型按鈕頭標志Ⅰ Rubber-cased button markerⅠ |
|
03 |
橡套型按鈕頭標志Ⅱ Rubber-cased button markerⅡ |
|
04 |
蘑菇型按鈕頭帶橡膠帽Mushroom type button with rubber cap |
|
05 |
蘑菇型按鈕頭帶自鎖功能Mushroom type button with self-lock function |
|
06 |
蘑菇型按鈕頭帶橡膠帽和自鎖功能Mushroom type button with rubber cap and self-lock function |
|
07 |
蘑菇型按鈕頭帶鑰匙Mushroom type button with key |
|
08 |
按鈕兩終端位置可鎖住,鑰匙可抽出 Both terminal positions of button can be locked, the key can be taken out |
|
09 |
按鈕按壓前可鎖住,鑰匙可抽出,按壓后可鎖住,鑰匙不可抽出 Before press the button is locked, the key can be taken out: After press, can be locked, the key can’t be taken out |
|
10 |
按鈕按壓前可鎖住,鑰匙可抽出,按壓后不能鎖住,鑰匙不可抽出 Before press the button is locked, the key can be taken out:After press, can’t be locked, the key can’t be taken out |
|
11 |
按鈕按壓前可鎖住,鑰匙不可抽出,按壓后可鎖住,鑰匙可抽出 Before press the button is locked, the key can’t be taken out:After press, can be locked, the key can be taken out |
|
12 |
按鈕按壓前不能鎖住,鑰匙不能抽出,按壓后可鎖住,鑰匙可抽出 Before press the button is locked, the key can’t be taken out:After press, can be locked, the key can be taken out |
|
13 |
按鈕按壓前不能鎖住,鑰匙可抽出,按壓后自動鎖住,用鑰匙打開 Before press the button is unlocked, the key can’t be taken out;After press, lock automatically open it with the key |
