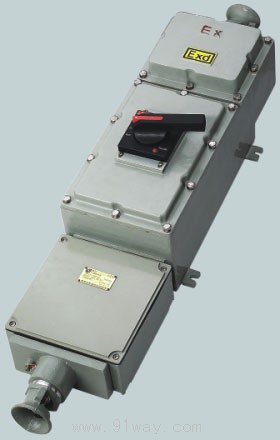

| 產品名稱: | BDZ51-□防爆斷路器(ⅡB) | |||||

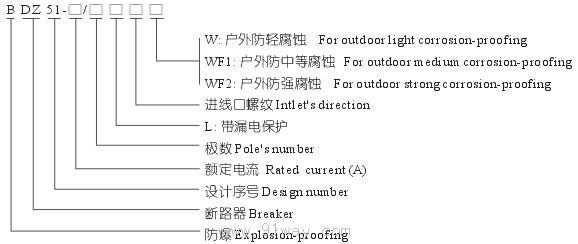

| 型號規格: | ![]() |
|||||
| 產品類別: | 常規產品 -- 特種電器 -- 防爆斷路器 | |||||
| 參考價格: | 廠價直銷 | |||||
| 產品品牌: | 國產 | |||||
| 產品產地: | 上海 | |||||
| 可供數量: | 批量 | |||||
| 供貨周期: | 現貨(或電詢) | |||||
|
||||||
| 產品簡介: |
|
|||||
BDZ51-□防爆斷路器(ⅡB)
1. 爆炸性氣體環境危險場所:1區、2區;
2. 可燃性氣體、蒸氣級別:ⅡA、ⅡB;
3. 溫度組別:T1~T4;
4. 戶內、戶外 (IP54)。
1. 鑄鋁合金外殼,表面噴塑;
2. 內裝C45N、C45AD、NM10、DZ20 系列斷路器;
3. 具有過載、短路等保護功能;
4. 鋼管或電纜布線。
|
額定電壓 Rated voltage (V) |
額定電流 Rated current (A) |
防爆標志 Explosion- proofing marker |
防護等級 Protection category |
防腐等級 Corrosion- proofing grade |
進線口螺紋 Inlet’s thread |
電纜外徑 Cable’s outside diameter |
|
380/220 |
1, 3, 5, 10, 15, 20, 25, 32, |
ExdeⅡBT4 ExdⅡBT4 |
IP54 |
W, WF1, WF2 |
G3/4 |
Φ10~Φ15 |
|
G1 |
Φ12~Φ18 |
|
額定電壓 Rated voltage (V) |
額定電流 Rated current (A) |
防爆標志 Explosion- proofing marker |
防護等級 Protection category |
防腐等級 Corrosion- proofing grade |
進線口螺紋 Inlet’s thread |
電纜外徑 Cable’s outside diameter |
|
380/220 |
1, 3, 5, 10, 15, 20, 25, 32, 40, 50, 63 |
ExdeⅡBT4 ExdⅡBT4 |
IP54 |
W, WF1, WF2 |
G3/4 |
Φ10~Φ15 |
|
G1 |
Φ12~Φ18 | |||||
|
G11/4 |
Φ13~Φ2 |
|
額定電壓 Rated voltage (V) |
額定電流 Rated current (A) |
防爆標志 Explosion- proofing marker |
防護等級 Protection category |
防腐等級 Corrosion- proofing grade |
進線口螺紋 Inlet’s thread |
電纜外徑 Cable’s outside diameter |
|
380/220 |
16, 20, 32, 40, 50, 63, 80, 100 |
ExdeⅡBT4 ExdⅡBT4 |
IP54 |
W, WF1, WF2 |
G1 |
Φ12~Φ18 |
|
G11/4 |
Φ15~Φ22 | |||||
|
G11/2 |
Φ20~Φ26 | |||||
|
G2 |
Φ27~Φ37 |
|
額定電壓 Rated voltage (V) |
額定電流 Rated current (A) |
防爆標志 Explosion- proofing marker |
防護等級 Protection category |
防腐等級 Corrosion- proofing grade |
進線口螺紋 Inlet’s thread |
電纜外徑 Cable’s outside diameter |
|
380 |
100, 125, 160, 180, 200, 225, 250 |
ExdeⅡBT4 ExdⅡBT4 |
IP54 |
W, WF1, WF2 |
G2 |
Φ27~Φ37 |
|
G21/2 |
Φ36~Φ44 | |||||
|
G3 |
Φ56 |
BDZ51-□防爆斷路器(ⅡB)
