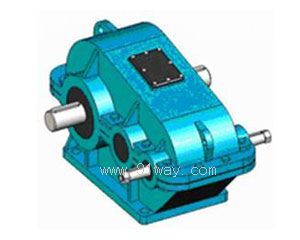

產品名稱： | ZL,ZLH,ZLSH兩級圓柱齒輪減速器 | ||||
| 型號規格： |   放大圖片 |
|||||
| 產品類別： | 常規產品 -- 機械傳動 -- 齒輪減速機 | |||||
| |
參考價格： | 廠價直銷 | ||||
| 產品品牌： | 國產 | |||||
| 產品產地： | 上海 | |||||
| |
可供數量： | 批量 | ||||
| 供貨周期： | 現貨(或電詢) | |||||
 |
|
|||||
| |
產品簡介： |
|
||||
|

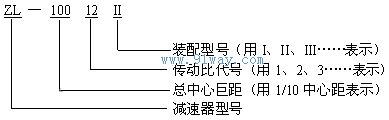

傳動比代號
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
| |
|
公稱傳動比
|
總傳動比
|
7.1
|
8
|
9
|
10
|
11.2
|
12.5
|
14
|
16
|
18
|
20
|
22.4
|
25
|
28
|
31.5
|
35.5
|
40
|
45
|
|
高速級傳動比
|
2.0
|
2.0
|
2.24
|
2.5
|
2.8
|
3.15
|
3.15
|
3.55
|
4
|
4.5
|
4.5
|
5
|
5.6
|
6.3
|
6.3
|
7.1
|
7.1
| |
|
低速級傳動比
|
3.55
|
4.0
|
4.0
|
4.0
|
4.0
|
4.0
|
4.5
|
4.5
|
4.5
|
4.5
|
5.0
|
5.0
|
5.0
|
5.0
|
5.6
|
5.6
|
6 | |

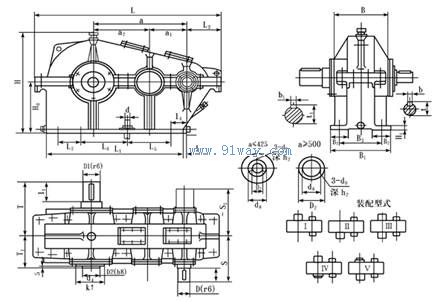

ZL、ZLH、ZLSH型減速器外形、安裝尺寸及裝配型式
|
型號
|
中心距
|
中心高
|
輪廓尺寸
|
B1
|
B2
|
L1
|
L2
|
L3
|
H1
|
地腳螺釘
| |||||||||||
|
a
|
a1
|
a2
|
H0
|
H
|
L
|
B
|
d
|
n
|
B3
|
L4
|
L5
|
L6
|
L7
| ||||||||
|
ZL
ZLH
ZLSH
|
25
|
250
|
100
|
150
|
200-0.5
|
398
|
560
|
256
|
256
|
70
|
435
|
-35
|
120
|
20
|
M20
|
6
|
210
|
-5
|
175
|
205
|
─
|
|
35
|
350
|
150
|
200
|
250-0.5
|
493
|
720
|
316
|
316
|
80
|
585
|
-40
|
135
|
20
|
260
|
0
|
255
|
255
|
─
| |||
|
42.5
|
425
|
175
|
250
|
300-0.5
|
588
|
860
|
346
|
346
|
80
|
705
|
-39
|
149
|
25
|
280
|
10
|
275
|
335
|
─
| |||
|
50
|
500
|
200
|
300
|
350-0.5
|
688
|
1035
|
400
|
400
|
90
|
850
|
-58
|
185
|
30
|
M24
|
8
|
330
|
30
|
290
|
275
|
150
| |
|
60
|
600
|
250
|
350
|
400-0.5
|
821
|
1185
|
460
|
460
|
100
|
945
|
-8
|
190
|
35
|
390
|
30
|
370
|
310
|
180
| |||
|
65
|
650
|
250
|
400
|
450-0.5
|
916
|
1300
|
500
|
500
|
110
|
1025
|
8
|
205
|
38
|
M30
|
420
|
55
|
395
|
325
|
200
| ||
|
75
|
750
|
300
|
450
|
500-0.5
|
1016
|
1460
|
570
|
570
|
120
|
1200
|
-18
|
214
|
40
|
480
|
25
|
485
|
370
|
240
| |||
|
85
|
850
|
350
|
500
|
550-0.5
|
1116
|
1655
|
620
|
620
|
130
|
1320
|
12
|
251
|
45
|
M36
|
530
|
65
|
505
|
445
|
250
| ||
|
100
|
1000
|
400
|
600
|
650-0.5
|
1306
|
1910
|
710
|
710
|
145
|
1550
|
22
|
265
|
50
|
610
|
75
|
595
|
510
|
320
| |||
|
115
|
1150
|
450
|
700
|
750-1.0
|
1496
|
2190
|
785
|
785
|
145
|
1770
|
42
|
295
|
55
|
M42
|
700
|
105
|
655
|
595
|
380
| ||
|
130
|
1300
|
500
|
800
|
850-1.0
|
1691
|
2460
|
845
|
845
|
150
|
2015
|
42
|
317
|
60
|
740
|
105
|
745
|
670
|
4 | |||
|
型號
|
高速軸
|
S
|
S1
|
低速軸
|
T
|
裝配型式Ⅴ－Ⅷ
|
最大重量/kg
| ||||||||||||
|
I
|
D
|
d
|
t
|
I1
|
D1
|
b1
|
t1
|
T1
|
D2
|
d4
|
d8
|
d9
|
h2
| ||||||
|
ZL
ZLH
ZLSH
|
25
|
55
|
25
|
8
|
27.5
|
235
|
245
|
70
|
40
|
12
|
42.8
|
250
|
160
|
25
|
45
|
35
|
M6
M8
|
15
20
|
135
|
|
35
|
55
|
30
|
8
|
32.5
|
265
|
275
|
85
|
55
|
16
|
58.5
|
305
|
190
|
60
|
40
|
230
| ||||
|
42.5
|
55
|
35
|
10
|
37.8
|
280
|
290
|
105
|
70
|
20
|
74.2
|
355
|
210
|
75
|
305
| |||||
|
50
|
70
|
45
|
14
|
48.2
|
325
|
340
|
115
|
85
|
24
|
90.0
|
390
|
235
|
75
|
95
|
55
|
490
| |||
|
60
|
85
|
50
|
16
|
53.5
|
375
|
386
|
140
|
100
|
28
|
105.7
|
450
|
270
|
110
|
725
| |||||
|
65
|
85
|
50
|
16
|
53.5
|
395
|
406
|
140
|
110
|
32
|
116.5
|
470
|
290
|
120
|
980
| |||||
|
75
|
105
|
60
|
18
|
63.9
|
450
|
463
|
165
|
130
|
36
|
137.2
|
540
|
325
|
140
|
1390
| |||||
|
85
|
105
|
70
|
20
|
74.2
|
490
|
500
|
180
|
140
|
36
|
147.2
|
580
|
350
|
150
|
1910
| |||||
|
100
|
125
|
80
|
24
|
85
|
560
|
567
|
200
|
170
|
40
|
178.5
|
655
|
395
|
180
|
2730
| |||||
|
115
|
140
|
90
|
24
|
95
|
610
|
620
|
240
|
200
|
45
|
209.7
|
735
|
435
|
220
|
4000
| |||||
|
130
|
160
|
100
|
28
|
105.7
|
660
|
670
|
280
|
220
|
50
|
231.0
|
805
|
465
|
240
|
5430 | |||||
帶負號的尺寸在高速軸軸心線的右側，不帶負號的尺寸位置與圖示位置相同。
ZL、ZLH、ZLSH減速器承載能力n1=1000（轉/分）
|
中
心
距
|
工作
類型
|
傳動比代號
| ||||||||||||||||
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
| ||
|
公稱傳動比
| ||||||||||||||||||
|
7.1
|
8
|
9
|
10
|
11.2
|
12.5
|
14
|
16
|
18
|
20
|
22.4
|
25
|
28
|
31.5
|
35.5
|
40
|
45
| ||
|
高速軸許用功率
| ||||||||||||||||||
|
250
|
中型
|
7.92
|
7.92
|
7.17
|
6.46
|
5.75
|
5.06
|
5.06
|
4.41
|
3.81
|
3.28
|
3.28
|
2.85
|
2.38
|
2.01
|
1.95
|
1.69
|
1.47
|
|
重型
|
6.51
|
5.90
|
5.43
|
5.01
|
4.62
|
4.15
|
3.64
|
3.33
|
3.05
|
2.68
|
2.43
|
2.25
|
1.95
|
1.65
|
1.58
|
1.38
|
1.22
| |
|
特重型
|
6.51
|
5.76
|
5.23
|
4.76
|
4.32
|
3.90
|
3.35
|
3.02
|
2.73
|
2.50
|
2.17
|
2.01
|
1.85
|
1.61
|
1.41
|
1.29
|
1.09
| |
|
連續型
|
6.24
|
5.31
|
4.75
|
4.27
|
3.82
|
3.40
|
2.88
|
2.56
|
2.28
|
2.03
|
1.73
|
1.56
|
1.40
|
1.24
|
1.02
|
0.910
|
0.757
| |
|
350
|
中型
|
21.4
|
18.8
|
17.7
|
16.7
|
15.7
|
14.7
|
12.9
|
11.8
|
10.5
|
9.34
|
8.00
|
7.21
|
6.45
|
5.73
|
4.70
|
4.17
|
3.47
|
|
重型
|
16.0
|
13.9
|
12.8
|
11.8
|
10.9
|
9.98
|
8.58
|
7.86
|
7.21
|
6.61
|
5.74
|
5.31
|
4.88
|
4.47
|
3.73
|
3.41
|
2.90
| |
|
特重型
|
15.7
|
13.5
|
12.3
|
11.2
|
10.2
|
9.20
|
7.90
|
7.14
|
6.44
|
5.91
|
5.13
|
4.74
|
4.36
|
4.00
|
3.35
|
3.06
|
2.59
| |
|
連續型
|
14.6
|
12.5
|
11.2
|
10.0
|
9.00
|
8.02
|
6.79
|
6.04
|
5.37
|
4.78
|
4.10
|
3.69
|
3.30
|
2.94
|
2.42
|
2.15
|
1.79
| |
|
425
|
中型
|
40.7
|
36.5
|
34.3
|
32.3
|
29.8
|
26.3
|
25.0
|
22.9
|
19.9
|
17.2
|
15.6
|
14.0
|
12.5
|
10.6
|
9.16
|
8.13
|
6.77
|
|
重型
|
31.0
|
26.9
|
24.8
|
22.9
|
21.1
|
19.4
|
16.7
|
15.3
|
14.0
|
12.9
|
11.2
|
10.3
|
9.51
|
8.67
|
7.27
|
6.66
|
5.65
| |
|
特重型
|
30.3
|
26.2
|
23.8
|
21.7
|
19.7
|
17.9
|
15.4
|
13.9
|
12.5
|
11.5
|
9.98
|
9.24
|
8.50
|
7.79
|
6.52
|
5.97
|
5.05
| |
|
連續型
|
28.3
|
24.2
|
21.7
|
19.5
|
17.5
|
15.6
|
13.2
|
11.7
|
10.5
|
9.31
|
7.98
|
7.19
|
6.43
|
5.73
|
4.72
|
4.20
|
3.49
| |
|
500
|
中型
|
60.0
|
60.0
|
54.5
|
49.3
|
44.0
|
38.9
|
38.9
|
34.0
|
29.5
|
25.4
|
25.4
|
22.2
|
18.5
|
15.7
|
15.7
|
13.2
|
11.7
|
|
重型
|
49.3
|
46.0
|
42.5
|
39.3
|
36.1
|
31.9
|
28.7
|
26.3
|
24.1
|
20.8
|
19.2
|
17.8
|
15.2
|
12.9
|
12.5
|
10.8
|
9.74
| |
|
特重型
|
49.3
|
44.9
|
40.8
|
37.3
|
33.9
|
30.7
|
26.4
|
23.9
|
21.6
|
19.8
|
17.2
|
15.9
|
14.7
|
12.6
|
11.2
|
10.3
|
8.70
| |
|
連續型
|
48.5
|
41.4
|
37.1
|
33.4
|
30.0
|
26.8
|
22.7
|
20.2
|
18.0
|
16.0
|
13.7
|
12.4
|
11.1
|
9.87
|
8.15
|
7.24
|
6.03
| |
|
600
|
中型
|
111
|
98.4
|
92.7
|
87.5
|
82.4
|
74.4
|
68.0
|
62.3
|
55.5
|
48.9
|
42.5
|
38.3
|
34.3
|
30.3
|
25.0
|
22.2
|
18.5
|
|
重型
|
83.6
|
72.5
|
66.9
|
62.0
|
57.2
|
52.6
|
45.3
|
41.6
|
38.2
|
35.0
|
30.5
|
28.2
|
26.0
|
23.8
|
19.9
|
18.2
|
15.4
| |
|
特重型
|
81.6
|
70.7
|
64.4
|
58.8
|
53.5
|
48.5
|
41.7
|
37.7
|
34.1
|
31.3
|
27.2
|
25.2
|
23.2
|
21.3
|
17.8
|
16.3
|
13.8
| |
|
連續型
|
76.3
|
65.2
|
58.5
|
52.7
|
47.3
|
42.3
|
35.9
|
31.9
|
28.5
|
25.4
|
21.8
|
19.6
|
17.6
|
15.6
|
12.9
|
11.5
|
9.55
| |
|
650
|
中型
|
114
|
114
|
104
|
94.0
|
84.2
|
74.4
|
74.4
|
65.2
|
56.6
|
48.9
|
48.9
|
42.7
|
35.7
|
30.3
|
30.3
|
25.6
|
25.6
|
|
重型
|
93.9
|
93.9
|
85.3
|
77.2
|
69.1
|
61.0
|
61.0
|
53.4
|
46.4
|
40.0
|
40.0
|
34.9
|
29.3
|
24.9
|
24.9
|
20.9
|
20.9
| |
|
特重型
|
93.9
|
93.9
|
85.3
|
77.2
|
69.1
|
61.0
|
61.0
|
53.0
|
45.4
|
39.2
|
39.2
|
34.2
|
28.7
|
24.4
|
24.4
|
20.5
|
20.5
| |
|
連續型
|
93.9
|
90.9
|
85.3
|
77.2
|
69.1
|
61.0
|
53.3
|
47.5
|
42.3
|
37.7
|
32.4
|
29.2
|
26.1
|
23.1
|
19.2
|
17.1
|
14.2
| |
|
750
|
中型
|
192
|
192
|
175
|
159
|
142
|
126
|
126
|
111
|
96.3
|
83.3
|
83.3
|
72.8
|
60.9
|
51.8
|
51.8
|
43.7
|
39.2
|
|
重型
|
158
|
151
|
140
|
130
|
117
|
103
|
95.4
|
87.6
|
78.8
|
68.2
|
64.3
|
59.5
|
50.0
|
42.5
|
42.1
|
35.8
|
32.7
| |
|
特重型
|
158
|
148
|
135
|
123
|
112
|
102
|
87.8
|
79.5
|
71.9
|
66.1
|
57.5
|
53.5
|
49.0
|
41.6
|
37.7
|
34.6
|
29.2
| |
|
連續型
|
158
|
136
|
123
|
111
|
99.4
|
88.9
|
75.5
|
67.3
|
60.0
|
53.5
|
45.9
|
41.5
|
37.1
|
33.1
|
27.3
|
24.3
|
20.2
| |
|
850
|
中型
|
316
|
280
|
264
|
247
|
222
|
197
|
195
|
173
|
150
|
130
|
123
|
111
|
95.6
|
81.3
|
72.5
|
64.5
|
53.7
|
|
重型
|
237
|
206
|
191
|
177
|
164
|
151
|
130
|
120
|
110
|
101
|
87.9
|
81.5
|
75.1
|
66.7
|
57.6
|
52.8
|
44.8
| |
|
特重型
|
231
|
201
|
184
|
168
|
153
|
139
|
120
|
109
|
98.3
|
90.3
|
78.6
|
72.9
|
67.1
|
61.6
|
51.6
|
47.3
|
40.0
| |
|
連續型
|
216
|
185
|
167
|
151
|
136
|
121
|
103
|
91.9
|
82.0
|
73.2
|
62.8
|
56.7
|
50.8
|
45.3
|
37.4
|
33.3
|
27.7
| |
|
1000
|
中型
|
471
|
471
|
431
|
361
|
324
|
288
|
288
|
253
|
221
|
192
|
192
|
168
|
141
|
120
|
120
|
101
|
92.5
|
|
重型
|
388
|
350
|
325
|
296
|
266
|
236
|
223
|
205
|
181
|
157
|
151
|
137
|
116
|
98.4
|
98.4
|
83.1
|
77.1
| |
|
特重型
|
388
|
342
|
313
|
286
|
261
|
236
|
205
|
186
|
169
|
154
|
135
|
125
|
113
|
96.4
|
88.9
|
81.4
|
68.9
| |
|
連續型
|
367
|
315
|
284
|
257
|
231
|
207
|
176
|
157
|
141
|
126
|
108
|
97.4
|
87.3
|
77.9
|
64.3
|
57.3
|
47.7
| |
|
1150
|
中型
|
654
|
654
|
600
|
547
|
493
|
403
|
403
|
355
|
310
|
269
|
269
|
236
|
198
|
169
|
169
|
143
|
143
|
|
重型
|
538
|
538
|
492
|
449
|
404
|
330
|
330
|
291
|
254
|
220
|
220
|
193
|
163
|
139
|
139
|
117
|
117
| |
|
特重型
|
538
|
534
|
489
|
449
|
404
|
330
|
323
|
289
|
248
|
216
|
213
|
189
|
159
|
136
|
136
|
115
|
109
| |
|
連續型
|
538
|
492
|
445
|
403
|
363
|
326
|
277
|
248
|
221
|
198
|
170
|
154
|
138
|
123
|
102
|
90.6
|
75.5
| |
|
1300
|
中型
|
875
|
875
|
803
|
733
|
662
|
591
|
591
|
479
|
419
|
364
|
364
|
320
|
269
|
229
|
229
|
194
|
194
|
|
重型
|
719
|
719
|
660
|
602
|
543
|
484
|
484
|
392
|
343
|
298
|
298
|
261
|
220
|
188
|
188
|
159
|
159
| |
|
特重型
|
719
|
719
|
660
|
602
|
543
|
484
|
477
|
389
|
336
|
292
|
292
|
256
|
216
|
184
|
184
|
156
|
156
| |
|
連續型
|
719
|
719
|
655
|
594
|
536
|
481
|
410
|
367
|
328
|
288
|
252
|
228
|
205
|
175
|
151
|
135
|
1 | |
ZL,ZLH,ZLSH兩級圓柱齒輪減速器
首頁｜供求反饋｜質量承諾｜訂購方式｜付款方式｜商品配送｜售后服務｜技術支持｜免責條款｜客戶投訴｜網站介紹｜聯系我們
Copyright®2011 www.zjlftv.cn 上海華邦工業商務網(倍源工貿)版權所有.
聯系電話：021-66770508 13916500500 傳真：021-66108310
Email:91way@163.com QQ:40606422
滬ICP備2021005791號
滬公網安備31010702003255號
您的位置：您的位置：
91way@163.com
