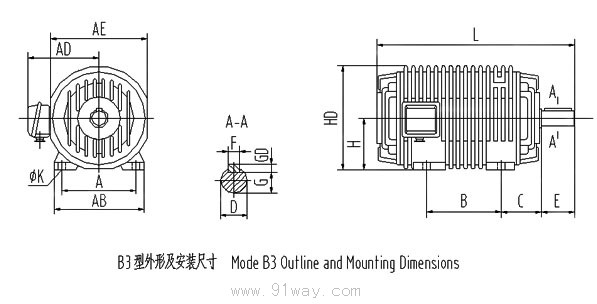

機(jī)座號	安裝尺寸												外形尺寸
Frame Size	Mounting Dimension												Outline Dimensions
	A	B	C	D		E	F	G	GD	H		K	AB	AE	AD	HD	L
112L	190	159	70	32k6	+0.018	80	10	27	8	112	0	12	235	240	205	240	445
					+0.002						-0.5
132M	216	178	89	38k6	+0.018			33		132	0		265	265	220	265	495
					+0.002						-0.5
160S	254		108	48k6	+0.018	110	14	42.5	9	160	0	15	315	315	250	320	570
160L		254			+0.002						-0.5						690
180L	279	279	121	55m6	+0.030		16	49	10	180	0		360	360	295	365	730
					+0.011						-0.5
200L	318	305	133	65m6	+0.030	140	18	58	11	200	0	19	415	415	320	415	780
					+0.011						-0.5
225M	356	311	149	75m6	+0.030		20	67.5	12	225	0		470	470	335	465	835
					+0.011						-0.5

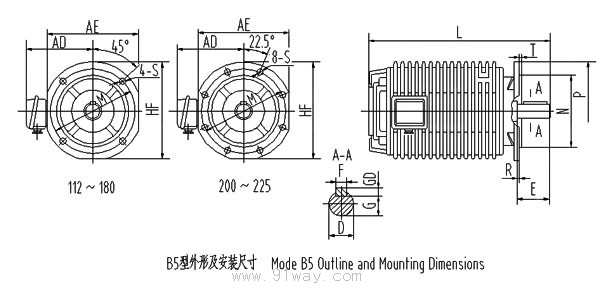

機(jī)座號	安裝尺寸													外形尺寸
Frame Size	Mounting Dimension													Outline Dimensions
	D		E	F	G	GD	M	N		P	R	S	T	AE	AD	HF	L
112L	32k6	+0.018	80	10	27	8	215	180j6	+0.014	50	0	15	4	240	205	240	445
		+0.002							-0.011
132M	38k6	+0.018			33		265	230j6	+0.016	300				265	220	285	495
		+0.002							-0.013
160S	48k6	+0.018	110	14	42.5	9	300	250j6	+0.016	350		19	5	315	250	335	570
160L		+0.002															690
180L	55m6	+0.030		16	49	10			-0.013					360	295	355	730
		+0.011
200L	65m6	+0.030	140	18	58	11	400	350js6	+0.018	450				415	320	450	780
		+0.011
225M	75m6	+0.030		20	67.5	12			-0.018					470	335	465	835
		+0.011

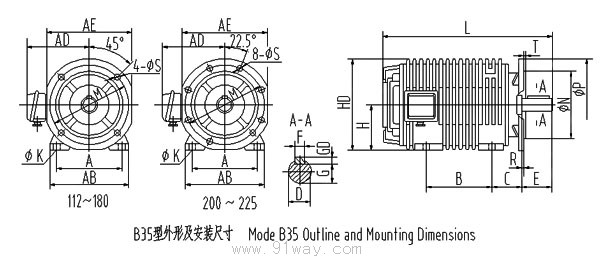

機(jī)座號	安裝尺寸																			外形尺寸
Frame Size	Mounting Dimension																			Outline Dimensions
	A	B	C	D		E	F	G	GD	H		K	M	N		P	R	S	T	AB	AE	AD	HD	L
112L	190	159	70	32k6	+0.018	80	10	27	8	112	0	12	215	180j6	+0.014	250	0	15	4	235	240	205	240	445
					+0.002						-0.5				-0.011
132M	216	178	89	38k6	+0.018			33		132	0		265	230j6	+0.016	300				265	265	220	290	495
					+0.002						-0.5				-0.013
160S	254		108	48k6	+0.018	110	14	42.5	9	160	0	15	350	250j6	+0.016	350		19	5	315	315	250	345	570
160L		254			+0.002						-0.5													690
180L	279	279	121	55m6	+0.030		16	49	10	180	0				-0.013					360	360	295	365	730
					+0.011						-0.5
200L	318	305	133	65m6	+0.030	140	18	58	11	200	0	19	450	350js6	+0.018	450				415	415	320	430	780
					+0.011						-0.5
225M	356	311	149	75m6	+0.030		20	67.5	12	225	0				-0.018					470	470	335	465	835
					+0.011						-0.5
